Hellcat L3 Fuel System (Dual Pump)
Price:
$1,860.00
Fuel Rail Option
Black (OE Supercharger)
Clear (OE Supercharger)
Black (Whipple 4.5L) (add $31)
Black (Kenne Bell 4.7L) (add $31)
Delete Fuel Rails (add $-435)
*
Primary Fuel Pump
Walbro GSS342 (add $85)
TI Auto F90000262 (add $110)
TI Auto F90000267 (add $110)
TI Auto F90000274 (add $115)
TI Auto F90000285 (add $150)
*
Secondary Fuel Pump
Walbro GSS342 (add $85)
TI Auto F90000262 (add $110)
TI Auto F90000267 (add $110)
TI Auto F90000274 (add $115)
TI Auto F90000285 (add $150)
*
Electrical Wiring
None (I have my own fuses, wiring, relays, etc)
FC2 Controller with 6 gauge wiring (add $209)
FC3 Staged Controller with 4 gauge wiring (add $249)
Sealed Delphi Connector and 7' 12 AWG pigtail (add $25)
*
Fuel Lines
PTFE -8 Feed / Return
FlexLP -8 Feed / Return
Startlite -8 Feed / Return
Upgrade to -10 Feed (add $65)
*
Filtration Media
Cellulose
Microglass SSD (add $19)
Stainless Steel (add $32)
*
Fuel Filter Upgrades
Upgrade to 128mm Filter (add $30)
Add billet mounting bracket (add $45)
Add filter monitoring gauge and fitting (add $59)
Hellcat Fuel Pressure Sensor
Delete OE Fuel Pressure Sensor
Inline Aftermarket Sensor (add $86)
Regulator Mounted Aftermarket Sensor (add $52)
*
System Options
0-100 psi Fuel Pressure Gauge (add $27)
Honeywell Pressure Switch for FC3 (add $45)
Flex fuel sensor intercept fittings (add $69)
Boost / Vacuum Manifold Kit (add $75)
Quantity
add to cart buy now
Details:

Hellcat L3 Fuel System (Dual Pump)

Boost Referenced Return System for 1200+ rwhp. Regulator mounted before rails. (pre-regulated) Parallel feed to fuel rails, with plug on end of each rail. We generally do not recommend this configuration since fuel vapor is trapped in the rails during starting and the fuel density may be inconsistent due to fuel stagnation.

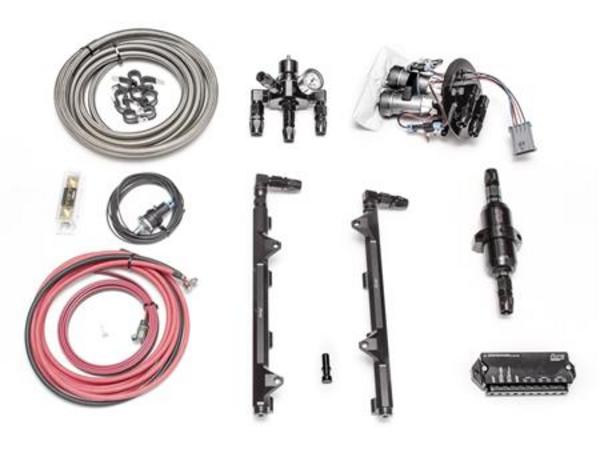

INCLUDES

  • LX / LC Hellcat Fuel Pump Module (dual pump)
  • F4i Fuel Pressure Regulator
  • 88mm Inline Fuel Filter
  • Billet Hellcat Hemi Fuel Rails
  • LX / LC Hellcat OE Feed Line Blockoff Plug
  • All fittings, hose, hardware required for typical fuel line plumbing

-30 feet of fuel line and 10 matching hose ends (your choice)
-Qty 6, billet low profile 90 degree o-ring fittings
-Qty 4, straight AN to ORB fittings
-Qty 3, -8 ORB plug
-Qty 2, 1.25" o-ring port extensions
-Qty 10, hose straps and mounting screws


Notes on Hellcat OE Fuel Pressure Sensor Options:

By default, our fuel system will delete the OE fuel pressure sensor. Due to popular request, we have added the following provisions for the fuel pressure sensor, which must be selected by the purchaser:

  • Delete OE Fuel Pressure Sensor

  • Inline Aftermarket Sensor: includes a new AC Delco sensor and provisions to mount in a high flow coupling with two more hose ends. In L2 and L4 systems, this can be installed without extending the OE electrical harness; however, extension of the OE harness may still be required on L3 systems.

  • Regulator Mounted Aftermarket Sensor: includes a new AC Delco sensor and an adapter to mount directly on the fuel pressure regulator. The installer will have to extend the OE electrical harness to accommodate the new location of the sensor.
