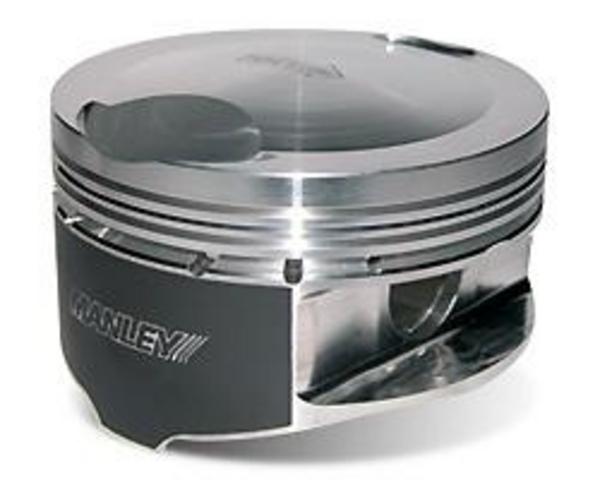

Manley 5.7L HEMI Pistons
Price:
$749.00
Details:

PLATINUM SERIES LIGHTWEIGHT PISTONS - learn more about pistons
Manley pistons are machined of high strength 2618 material. Each design is lightweight yet robust enough to deliver long service life. Perfect ring groove to skirt squareness is achieved through our unique "one fixturing" manufacturing method that assures maximum horsepower. Roundwire locks and pressure balance grooves are included with every set at no additional charge. Compression ratios for the 5.7L are calculated at .003” deck clearance and a 3.941” head gasket ID with a .028” compressed thickness.

Premium Chrome Moly wrist pins are included with the Standard Series and 9310 Alloy wrist pins are included with the Extreme Duty Series.

Forging

       2618 alloy for maximum high temperature strength and fatigue resistance.

Attributes

  • "Contour forgings" provide the optimum balance between strength and weight with no grain-interrupting internal milling.
  • Proprietary multi-step top ring groove machining process assures optimum control of the groove's size, geometry, flatness, and finish.
  • All final turning is performed in one fixturing resulting in complete squareness of rings to the cylinder wall.
  • Federal Form-Scan gauging validates ideal skirt indexing to pinhole and skirt-to-skirt polarity.
  • Value - added features such as a pressure balance groove included in all series.
  • Precise pinhole machining results in an exact compression distance as well as precise lock ring groove spacing, size, and concentricity.
  • Moly coated skirts come standard on all Ford Modular pistons and are optional on the Chevy LS and Chrysler HEMI pistons.
  • Offset wrist pin design ensures more quiet start-ups and better performance.
Part Numbers:
597400C-8
597400CE-8 (add $200)
*
Quantity:
add to cart buy now
Standard
Part No.
Extreme Duty
Part No.
Bore Size Rod Length Stroke Compression
Distance
Pin
Dia
85cc
Thru 2008
(5.7)
65cc
2009-Up
(5.7)
74cc
Head
(6.1)
Pistons
Wt / Gms
Ductile Iron
Top Rings
Premium Steel
Top Rings
  Chrysler HEMI 5.7L STOCK STROKE 9.3cc DOME
597400C-8 597400CE-8 3.917" / 99.5mm   6.240" 3.579" / 90.9mm 1.220" .927" 9.63 12.42 10.97 427 46120-8 46120ST-8
597405C-8 597405CE-8 3.922" / 99.63mm   6.240" 3.579" / 90.9mm 1.220" .927" 9.65 12.45 10.99 428 46121-8 46121ST-8
597420C-8 597420CE-8 3.937" / 100mm   6.240" 3.579" / 90.9mm 1.220" .927" 9.72 12.53 11.07 434 46122-8 46122ST-8
  Chrysler HEMI 5.7L STOCK STROKE -1.5cc FLAT TOP
597500C-8 597500CE-8 3.917" / 99.5mm   6.240" 3.579" / 90.9mm 1.220" .927" 8.62 10.72 9.65 400 46120-8 46120ST-8
597505C-8 597505CE-8 3.922" / 99.63mm   6.240" 3.579" / 90.9mm 1.220" .927" 8.64 10.75 9.67 402 46121-8 46121ST-8
597520C-8 597520CE-8 3.937" / 100mm   6.240" 3.579" / 90.9mm 1.220" .927" 8.70 10.82 9.74 408 46122-8 46122ST-8
  Chrysler HEMI 5.7L LOW COMPRESSION STOCK STROKE -12cc DISH
597100C-8 597100CE-8 3.917" / 99.5mm 6.240" 3.579" / 90.9mm 1.220" .927" 7.85 9.49 8.67 393 46120-8 46120ST-8
597105C-8 597105CE-8 3.922" / 99.63mm 6.240" 3.579" / 90.9mm 1.220" .927" 7.87 9.52 8.69 395 46121-8 46121ST-8
597120C-8 597120CE-8 3.937" / 100mm 6.240" 3.579" / 90.9mm 1.220" .927" 7.92 9.58 8.74 401 46122-8 46122ST-8
